拉铆螺母

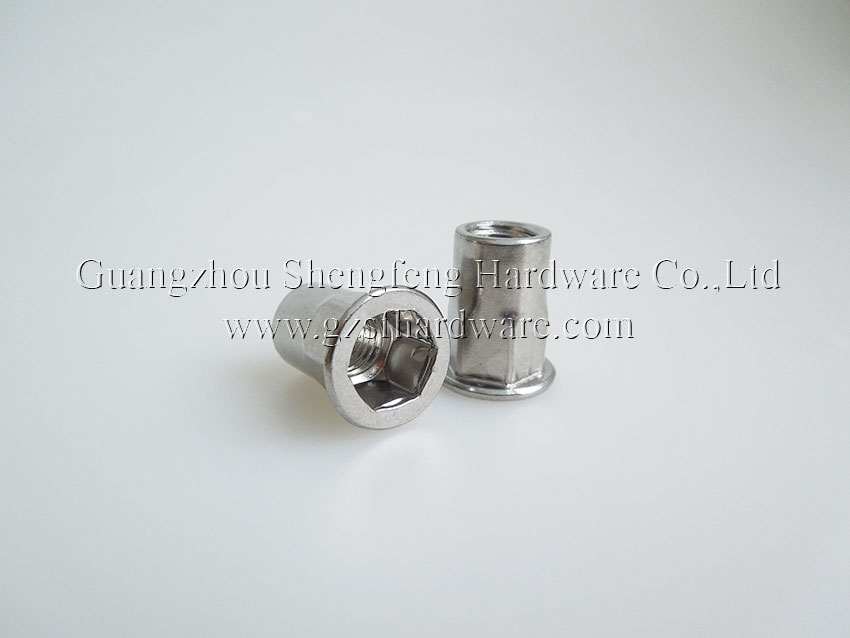

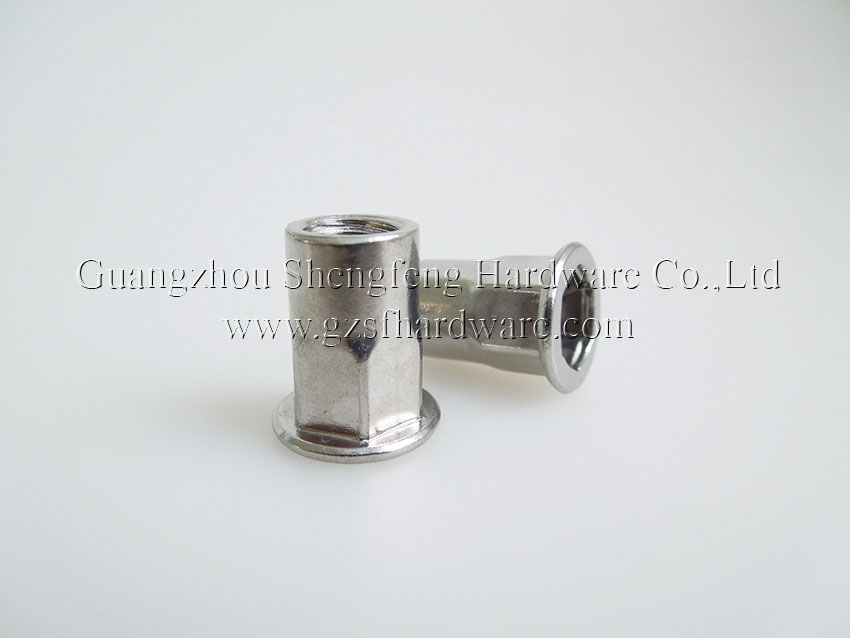

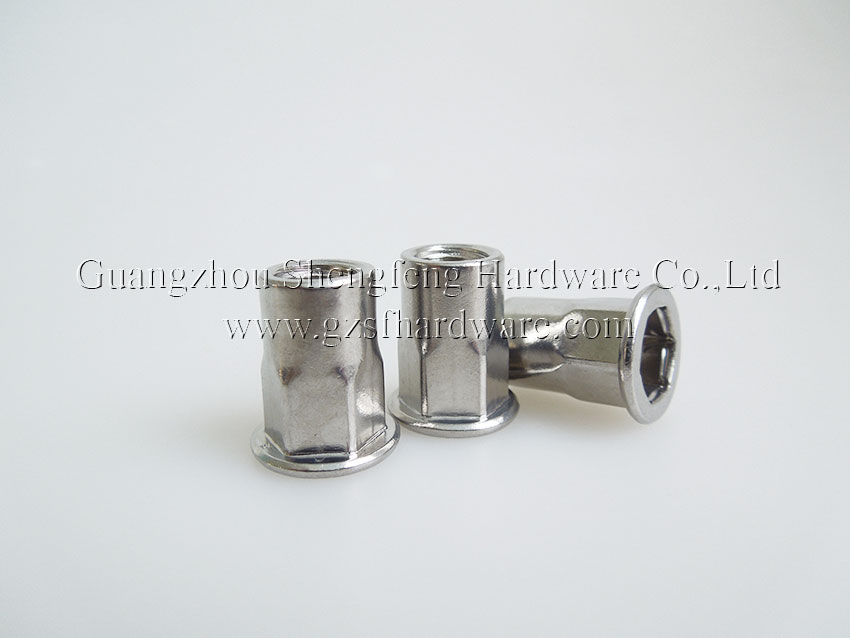

平头半六角铆螺母

材质:304不锈钢、316不锈钢、碳钢、铝合金、铜单位:mm螺纹规格Thread? Size产品编号Part Number钻孔直径Open End（通孔）Closed End（盲孔）(H)Grip Range（铆接钣厚）d0＋0.05d(max)Dk±0.30K±0.20L ±0.30d(max)Dk±0.30K±0.20L

品牌：晟峰 S.F 表面处理：多种

在线咨询

020-34831869

产品详情

　

材质:304不锈钢、316不锈钢、碳钢、铝合金、铜														单位:mm

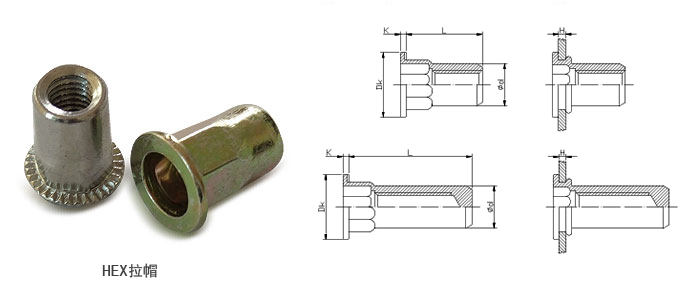

螺纹规格 Thread? Size	产品编号 Part Number	钻孔直径		Open End（通孔）					Closed End（盲孔）					(H)Grip Range （铆接钣厚）
		d0	＋0.05	d(max)		Dk±0.30	K±0.20	L ±0.30	d(max)		Dk±0.30	K±0.20	L ±0.30
			-0.00
M3*0.5	HEX30509-2.0	5.0		5.0		7.0	0.80	8.5	5.0		7.0	0.80	16	0.5-2.0
M4*0.7	HEX40610.5-2.5	6.0		6.0		9.0	0.80	10.5	6.0		9.0	0.80	17	0.5-2.5
M5*0.8	HEX50712.5-3	7.0		7.0		10.0	1.00	12.5	7.0		10.0	1.00	19	0.5-3.0
M6*1.0	HEX60915-3	9.0		9.0		12.0	1.30	15.0	9.0		12.0	1.30	22	0.5-3.0
M6*1.0	HEX609.615.5-3.5	9.6		9.6		12.6	1.00	15.5	9.6		12.6	0.90	22	0.5-3.5
M8*1.25	HEX81118-4	11.0		11.0		14.5	1.50	18.0	11.0		15.0	1.50	28	0.5-4.0
M10*1.5	HEX101322.5-5	13.0		13.0		16.5	1.80	21.0	13.0		16.5	1.80	30	1.0-5.0
M12*1.75	HEX121524-6	15.0		15.0		18.0	2.00	24.0	15.0		19.0	2.00	36	1.5-6.0
备注:可根据客户需要生产本规格表以外尺寸及特殊形状的拉帽。

Material:304Stainless steel 、316Stainless steel、Carbon steel、Aluminum、Brass														UINT:inch
螺纹规格Thread Size	产品编号 Part Number	钻孔直径		Open End（通孔）					Closed End（盲孔）					(H)Grip Range （铆接钣厚）
		d0	＋.002	d(max)		Dk±.012	K±.008	L ±.012	d(max)		Dk±.012	K±.008	L ±.012
			-.00
6-32UNC	HEX632058.5-2.0	.197		.197		.276	.031	.335	.197		.276	.031	.630	.020-.079
8-32UNC	HEX8320610.5-2.5	.236		.236		.354	.031	.413	.236		.354	.031	.669	.020-.098
10-24UNC	HEX10240712.5-3	.276		.276		.394	.039	.492	.276		.394	.039	.748	.020-.118
1/4-20UNC	HEX-14200915-3	.354		.354		.472	.051	.591	.354		.472	.051	.866	.020-.118
1/4-20UNC	HEX12049.615.5-3.5	.378		.378		.496	.039	.610	.378		.496	.039	.866	.020-.138
5/16UNC	HEX5161118-4	.433		.433		.591	.059	.709	.433		.591	.059	1.102	.020-.157
3/8-16UNC	HEX381321-5	.512		.512		.650	.071	.827	.512		.650	.071	1.181	.039-.197
1/2-13UNC	HEX12131524-6	.591		.591		.709	.079	945	.591		.709	.079	1.417	.059-.236

Note:We can produce other size and special shape insert nuts according to the customers'requests outside this table. 广州市晟峰五金 www.gzsfhardware.com
